Checking the Unit

Checking the Unit

Notes
Use this article as a guide to checking an Optiweigh Unit

Tools

  1. Smartphone with the Optiweigh app installed and up-to-date
  2. RFID tag

Connect to the Unit

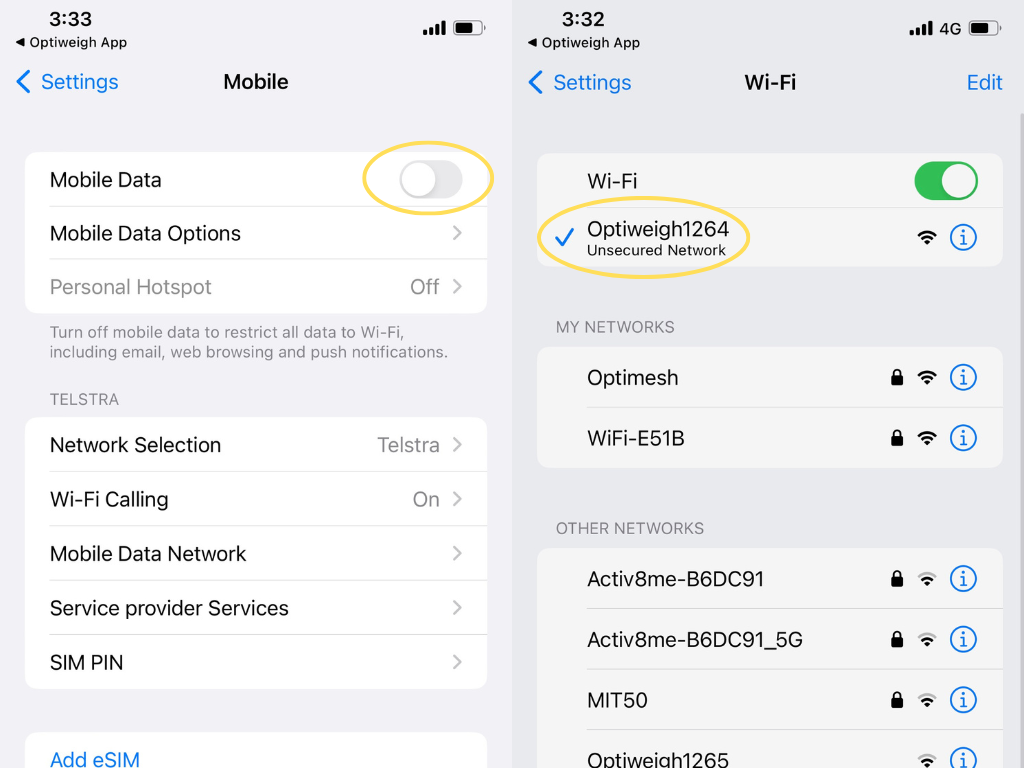

1. In your phone settings, connect to the Optiweigh WiFi
2. Turn off mobile data (this sometimes interferes with the WiFi strength)

Info
You must be at the unit to connect to it

Optiweigh App

1. Open the Optiweigh App

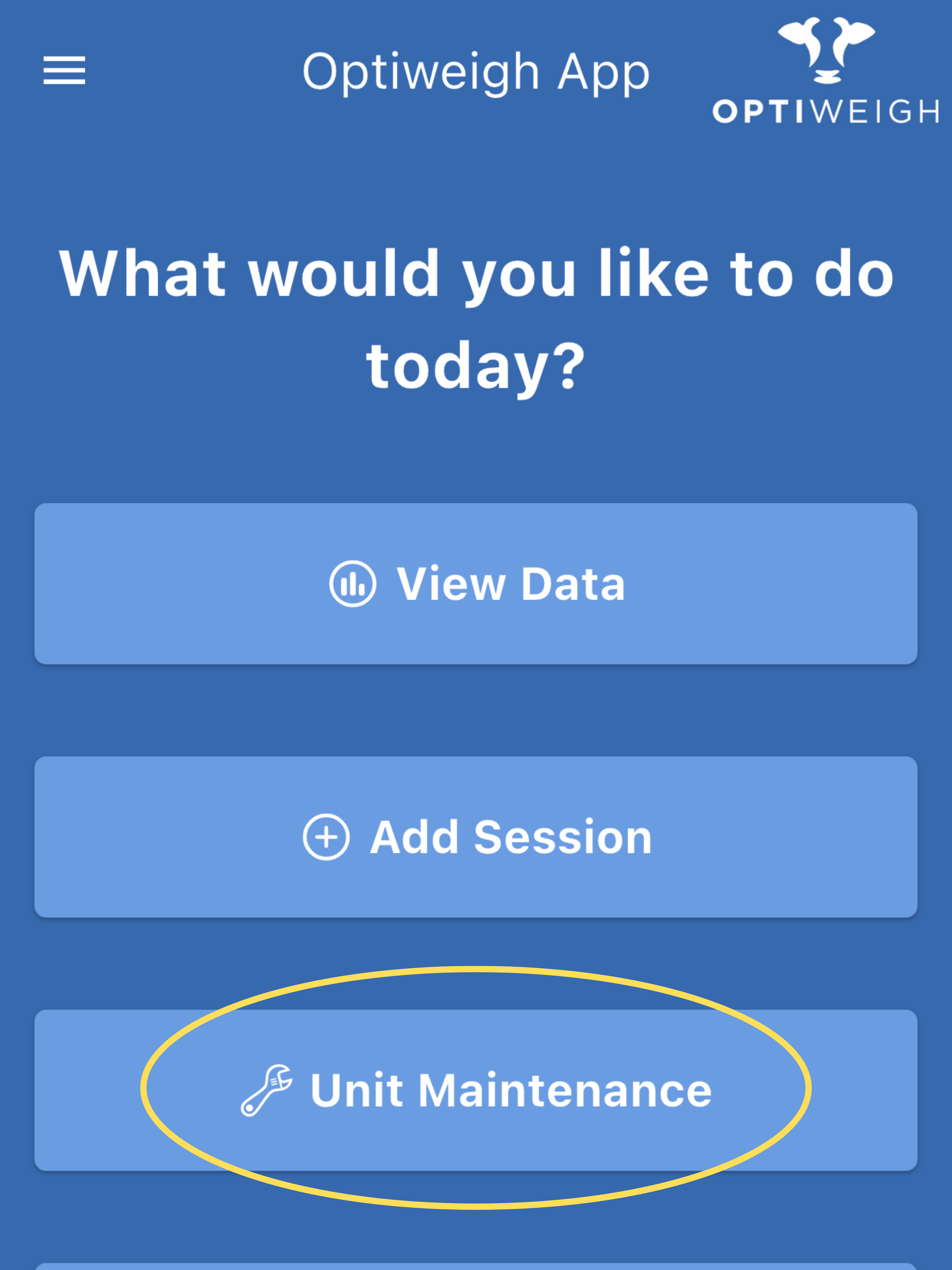

2. Click "Unit Maintenance"

Idea
If a pop-up appears, make sure to allow local networks!

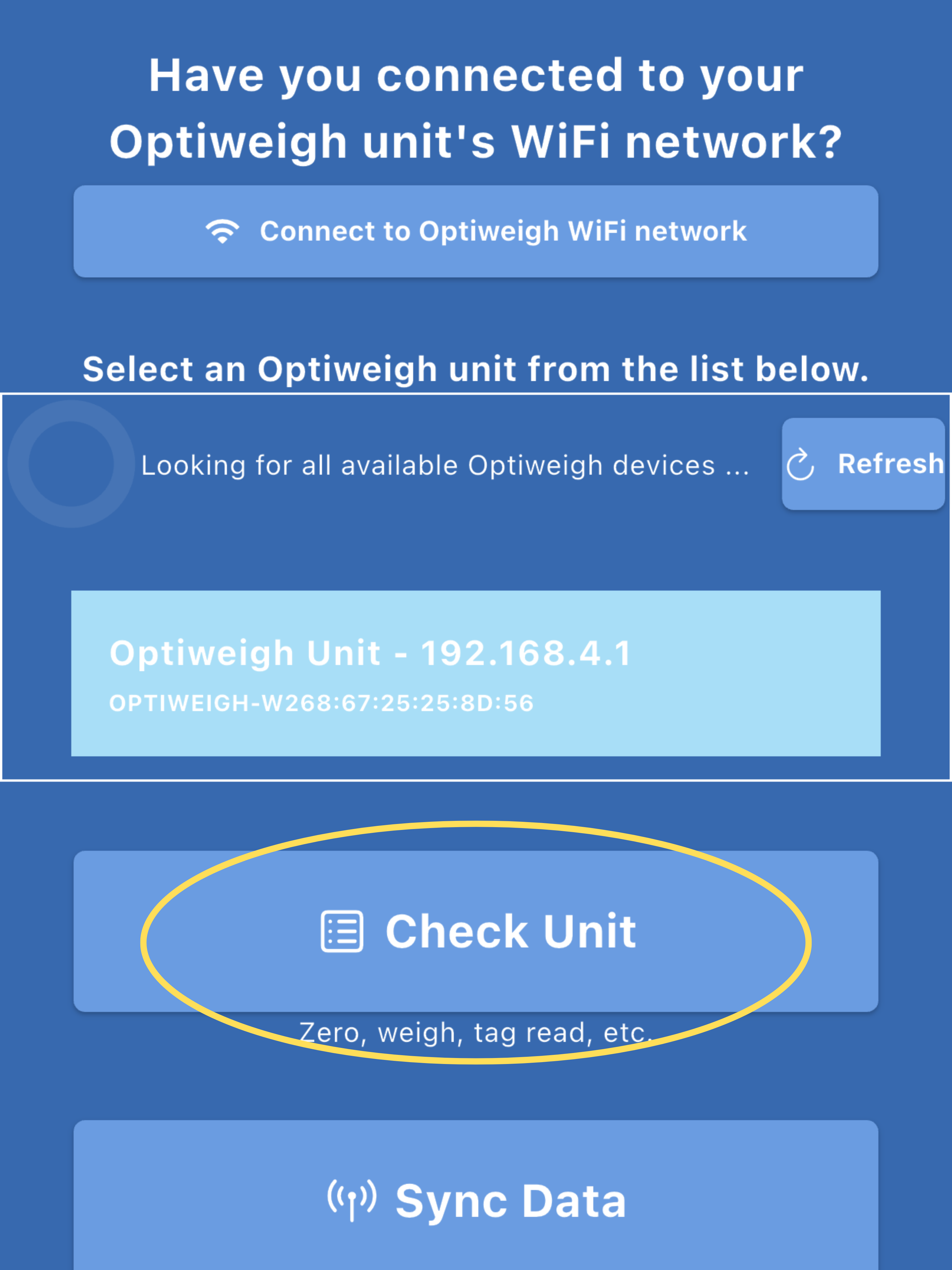

3. When the unit appears, click "Check Unit"

Zeroing the Unit

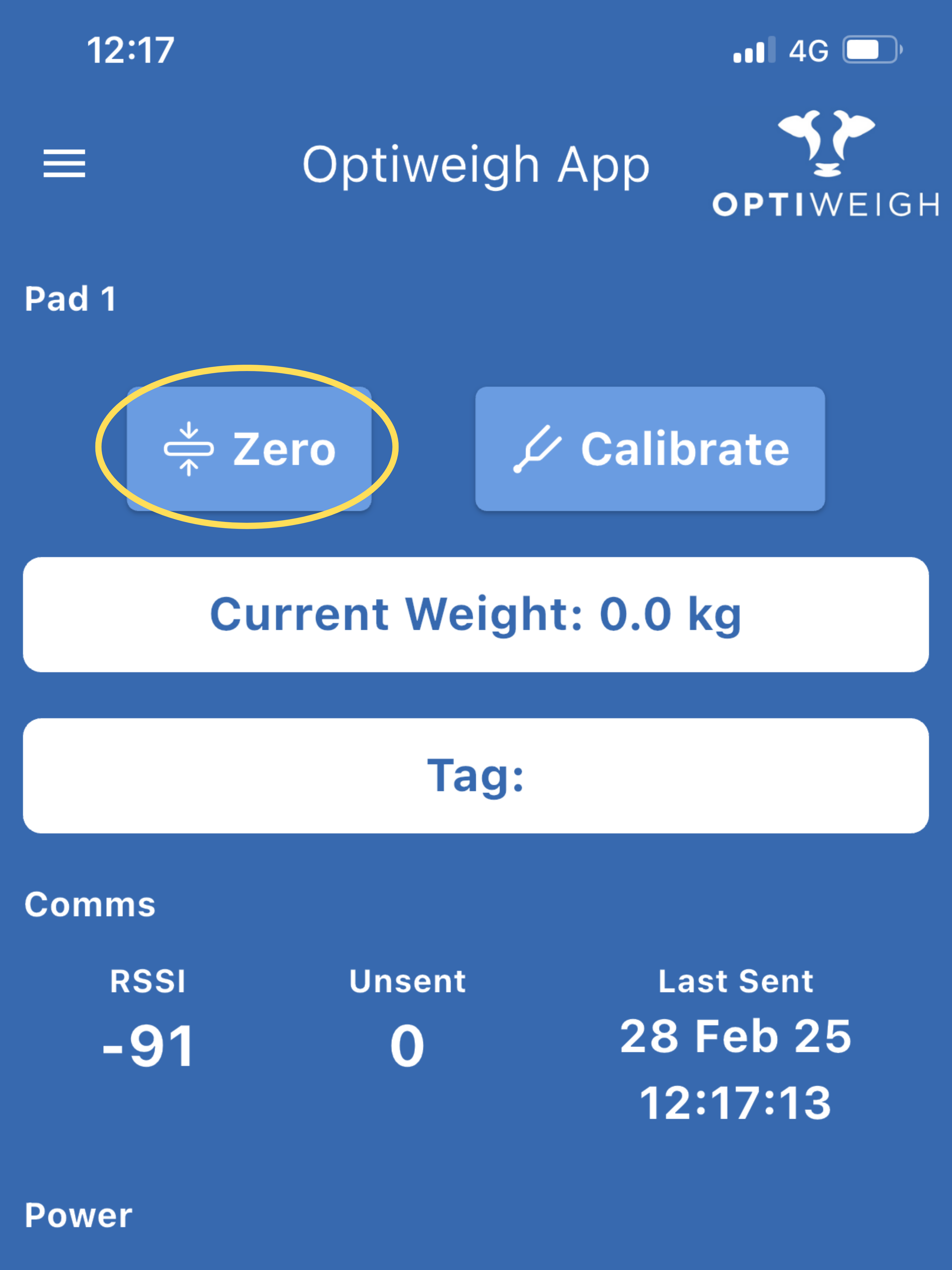

1. Press "ZERO"
2. Test your weight and ensure it goes back to zero when you finish

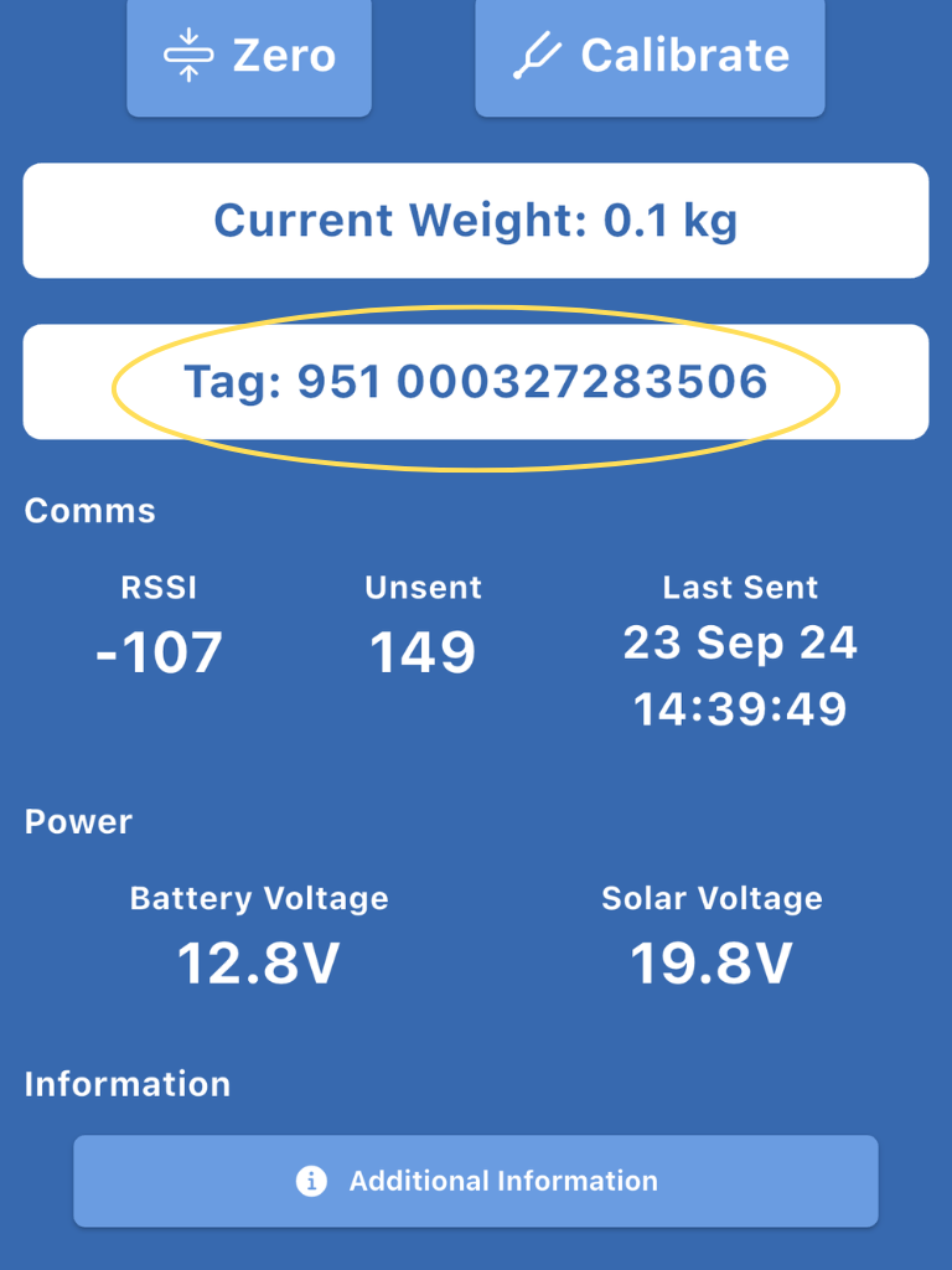

Testing the Tag Reader

1. Wave a RFID tag in front of the panel reader
2. The WIC box should beep each time the tag scans and the RFID number should appear in the 'Tag:' section

Alert
If you need any assistance, please don't hesitate to call the Optiweigh Support team on 1300 678 493
